Complete Certificate 1000-4000kg Electric Scissor Lift Tables Hydraulic Electric Fixed Scissor Lifting Table
Product Details:
|
Model
|
Rated loading capacity (kg)
|
Platform size (mm)
|
Min. Height (mm)
|
Max. Height (mm)
|
Lifting time (s)
|
Net weight (kg)
|
|
DG1001
|
1000
|
1300*820
|
205
|
990
|
20~25
|
180
|
|
DG1002
|
1000
|
1600*1000
|
205
|
990
|
20~25
|
200
|
|
DG1003
|
1000
|
1700*850
|
240
|
1300
|
30~35
|
220
|
|
DG1004
|
1000
|
1700*1000
|
240
|
1300
|
30~35
|
230
|
|
DG1005
|
1000
|
2000*850
|
240
|
1300
|
30~35
|
230
|
|
DG1006
|
1000
|
2000*1000
|
240
|
1300
|
30~35
|
250
|
|
DG1007
|
1000
|
1700*1500
|
240
|
1300
|
30~35
|
400
|
|
DG1008
|
1000
|
2000*1700
|
240
|
1300
|
30~35
|
470
|
|
DG2001
|
2000
|
1300*850
|
230
|
1000
|
50~60
|
260
|
|
DG2002
|
2000
|
1600*1000
|
230
|
1000
|
50~60
|
290
|
|
DG2003
|
2000
|
1700*850
|
250
|
1300
|
50~60
|
320
|
|
DG2004
|
2000
|
1700*1000
|
250
|
1300
|
50~60
|
330
|
|
DG2005
|
2000
|
2000*850
|
250
|
1300
|
50~60
|
330
|
|
DG2006
|
2000
|
2000*1000
|
250
|
1300
|
50~60
|
350
|
|
DG2007
|
2000
|
1700*1500
|
250
|
1400
|
50~60
|
460
|
|
DG2008
|
2000
|
2000*1800
|
250
|
1400
|
50~60
|
550
|
|
DG4001
|
4000
|
1700*1200
|
250
|
1050
|
55~65
|
410
|
|
DG4002
|
4000
|
2000*1200
|
250
|
1050
|
55~65
|
450
|
|
DG4003
|
4000
|
2000*1000
|
300
|
1400
|
55~65
|
520
|
|
DG4004
|
4000
|
2000*1200
|
300
|
1400
|
55~65
|
540
|
|
DG4005
|
4000
|
2200*1000
|
300
|
1400
|
55~65
|
530
|
|
DG4006
|
4000
|
2200*1200
|
300
|
1400
|
55~65
|
560
|
|
DG4007
|
4000
|
1700*1500
|
300
|
1300
|
55~65
|
630
|
|
DG4008
|
4000
|
2200*1800
|
300
|
1300
|
55~65
|
720
|
Chengxin SS Series Scissor Lift Tables are high-quality electronic hydraulic scissor lifts with loading capacities from 1,000KG to 4,000KG, and lifting heights up to 4m. We also accept customized platform size and lifting height. It can be installed both on the ground and in the pit.
Features & Advantages:
1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lifts and fall very stable.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissor to prevent damages during operation.
10. Brief structure make it much easier to operate and maintain.
11. Stop at the per-concerted and accurate location point.

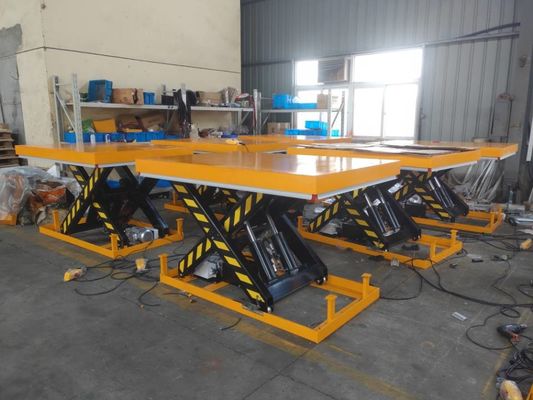

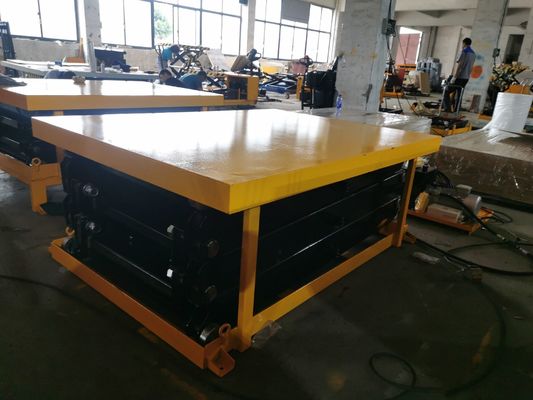

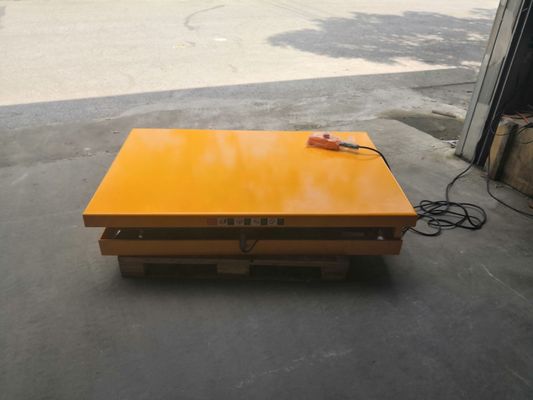

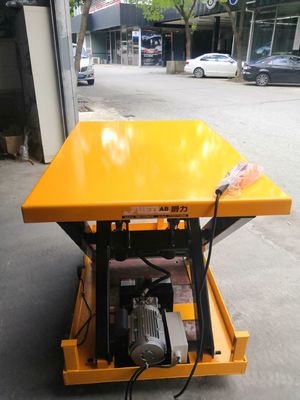

Product details pictures
Safety Precautions
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Overload protection locking device: in case of dangerous overload.
5. Anti-dropping device: Prevent falling of platform.
6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
Package
Package : by sea-worthy standard package in carton & plywood pallet.
