Product Details:
|
Product Name: | Ultra-low Electric Hydraulic Scissor Lifting Tables | Model: | DDG1500 |
---|---|---|---|
Rated Loading Capacity: | 1500kg | Min. Height: | 105mm |
Max. Height: | 860mm | Platform Size: | 1600*1200mm |
Net Weight: | 380kg | Color: | Yellow/ Blue/ Red/ Green/ White, Etc. |
Lift Drive / Actuation: | Hydraulic | Warranty: | 12 Months |

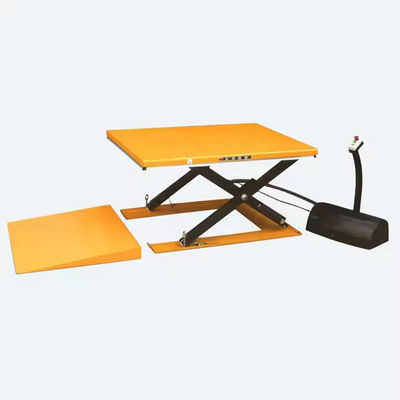

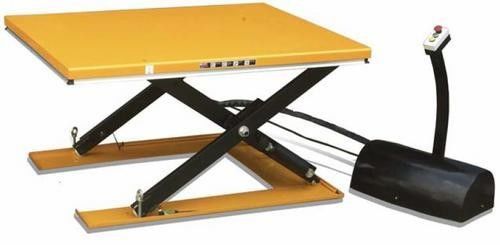

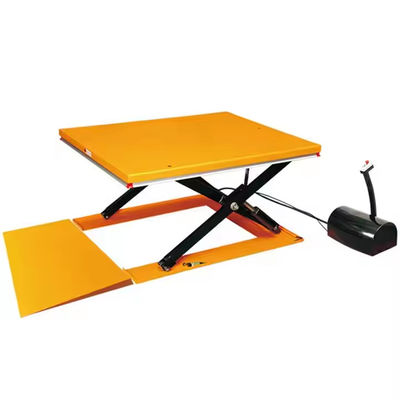

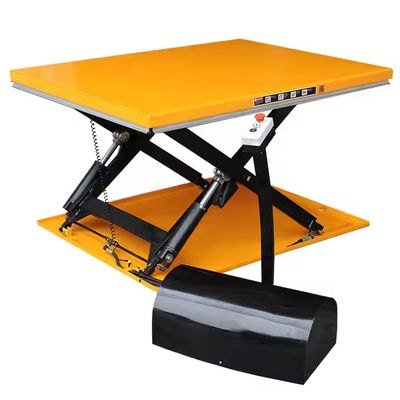

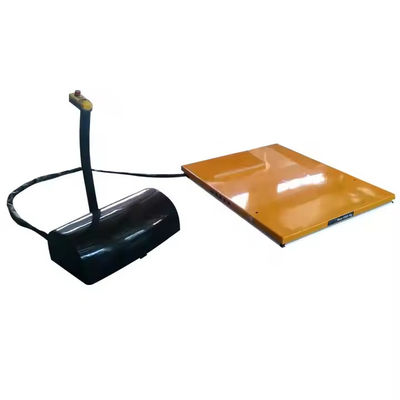

Factory Professional Electric Pallet Lifter 1500kg Capacity Ultra Low Profile Scissor Lifting Table Platform
Product description
Hydraulic Scissor Lift Table Platform,standard model types,We produce over 40 standard model types.Besides the standard model type,we support customized service,can be produced as per your required platform size,lifting height and capacity etc.There are many options
Specifications
Model |
Loading Capacity (kg) |
Min. Height (mm) |
Max. Height (mm) |
Table Size (mm) |
Voltage (V) |
Net Weight (kg) |
DDG1000 |
1000 |
85 |
860 |
1450*1140 |
380/220V |
280 |
DDG1500 |
1500 |
105 |
860 |
1600*1200 |
380/220V |
380 |
DDG2000 |
2000 |
105 |
860 |
1600*1200 |
380/220V |
380 |
Specifications Uitra-Low Platform

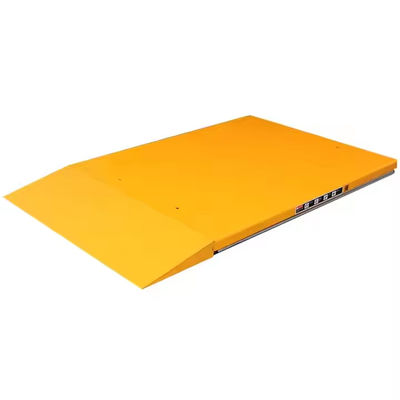

Low profile scissor lift talbe,lifting height is from 85mm to 860mm.Capacity is from 1000kg to 2000kg.The scissor lift platform has a 5 degree ramp for trolley and pallet truck to go on it.Famous for it's ultra low self height.
Details Display
Package & Shipping
Our Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
◊ Respond to inquiries within 24 hours.
◊ Professional pre-sales service technology to provide a full range of solutions.
◊ We could offer professional use,installation and adjustment training.
◊ The technician support remote or on site.
◊ Welcome to our factory and company.
