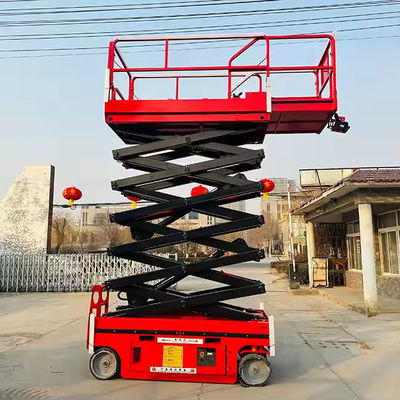

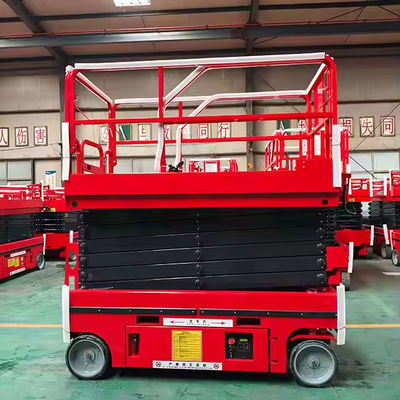

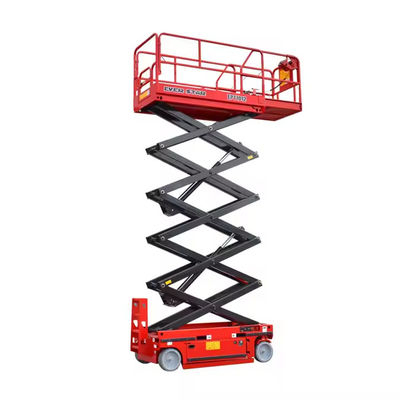

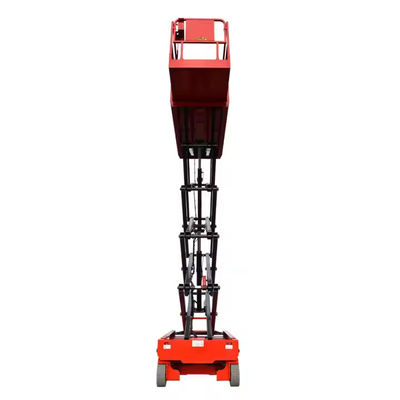

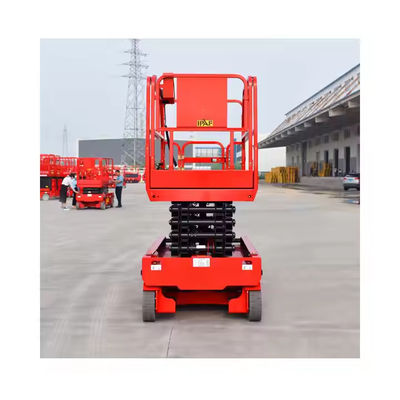

Factory Price 6m Hydraulic Lifting Scaffold Platform Self Propelled Electric Mobile Scissor Lift Platform
Product Specifications:
| Model |
Platform Size
(mm) |
Rated loading Capacity (kg) |
Max Lifting Height (m) |
Max Working Height (m) |
Overall Size
(mm) |
Platform Extension Length (mm) |
Power
(KW) |
Net Weight
(kg) |
| GTJZD03 |
1290*700 |
240 |
3 |
5 |
1435*760*1900 |
0.6 |
|
900 |
| GTJZD04 |
1290*700 |
240 |
4 |
6 |
1440*760*2030 |
0.6 |
|
950 |
| GTJZ06 |
1670*740 |
230 |
6 |
8 |
1850*790*2200 |
0.9 |
3.3 |
1530 |
| GTJZ-6A |
2300*810 |
380 |
6 |
8 |
2480*810*2180 |
0.9 |
3.3 |
1880 |
| GTJZ-6 |
2300*1130 |
550 |
6 |
8 |
2480*1190*2190 |
0.9 |
3.3 |
2150 |
| GTJZ-8A |
2260*810 |
230 |
8 |
10 |
2480*850*2300 |
0.9 |
3.3 |
2030 |
| GTJZ-8 |
2260*1130 |
450 |
8 |
10 |
2480*1190*2320 |
0.9 |
3.3 |
2300 |
| GTJZ-10 |
2290*1130 |
320 |
10 |
12 |
2495*1181*2450 |
0.9 |
3.3 |
2530 |
| GTJZ-12 |
2290*1130 |
320 |
11.8 |
13.8 |
2495*1187*2585 |
0.9 |
4.5 |
2870 |
| GTJZ-14 |
2670*1130 |
227 |
13.8 |
15.8 |
2840*1400*2595 |
0.9 |
4.5 |
3340 |
Special hydraulic pump station for pump station lifting operation platform.
Install an emergency descent valve, and manually control the descent when the platform is powered off; Built in overflow valve, which can prevent excessive system pressure during upward movement and provide protection function.
Up and down control. Install a safety emergency stop in the control section to maximize the protection of property and personal safety. Each operating part uses 36V safety control voltage.
