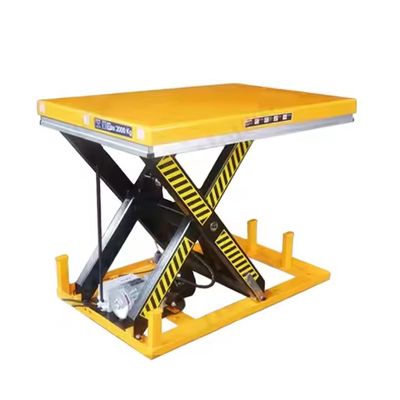

1T 2T 4T Heavy Duty Warehouse Hydraulic Stationary Fixed Electric Scissor Lift Platform Table With CE
Features:
Heavy Duty Design.
These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tension (24V) control box with up-down buttons.

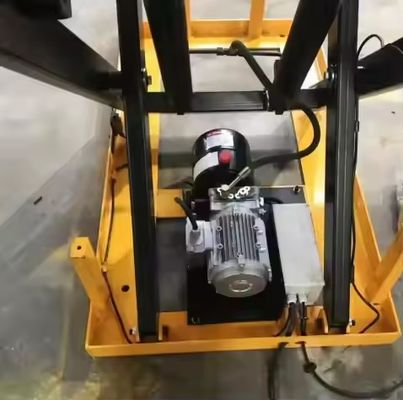

Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and lift table installation.
Equip High quality AC power packs.
|
Model
|
Rated loading capacity (kg)
|
Platform size (mm)
|
Min. Height (mm)
|
Max. Height (mm)
|
Lifting time (s)
|
Net weight (kg)
|
|
DG1001
|
1000
|
1300*820
|
205
|
990
|
20~25
|
180
|
|
DG1002
|
1000
|
1600*1000
|
205
|
990
|
20~25
|
200
|
|
DG1003
|
1000
|
1700*850
|
240
|
1300
|
30~35
|
220
|
|
DG1004
|
1000
|
1700*1000
|
240
|
1300
|
30~35
|
230
|
|
DG1005
|
1000
|
2000*850
|
240
|
1300
|
30~35
|
230
|
|
DG1006
|
1000
|
2000*1000
|
240
|
1300
|
30~35
|
250
|
|
DG1007
|
1000
|
1700*1500
|
240
|
1300
|
30~35
|
400
|
|
DG1008
|
1000
|
2000*1700
|
240
|
1300
|
30~35
|
470
|
|
DG2001
|
2000
|
1300*850
|
230
|
1000
|
50~60
|
260
|
|
DG2002
|
2000
|
1600*1000
|
230
|
1000
|
50~60
|
290
|
|
DG2003
|
2000
|
1700*850
|
250
|
1300
|
50~60
|
320
|
|
DG2004
|
2000
|
1700*1000
|
250
|
1300
|
50~60
|
330
|
|
DG2005
|
2000
|
2000*850
|
250
|
1300
|
50~60
|
330
|
|
DG2006
|
2000
|
2000*1000
|
250
|
1300
|
50~60
|
350
|
|
DG2007
|
2000
|
1700*1500
|
250
|
1400
|
50~60
|
460
|
|
DG2008
|
2000
|
2000*1800
|
250
|
1400
|
50~60
|
550
|
|
DG4001
|
4000
|
1700*1200
|
250
|
1050
|
55~65
|
410
|
|
DG4002
|
4000
|
2000*1200
|
250
|
1050
|
55~65
|
450
|
|
DG4003
|
4000
|
2000*1000
|
300
|
1400
|
55~65
|
520
|
|
DG4004
|
4000
|
2000*1200
|
300
|
1400
|
55~65
|
540
|
|
DG4005
|
4000
|
2200*1000
|
300
|
1400
|
55~65
|
530
|
|
DG4006
|
4000
|
2200*1200
|
300
|
1400
|
55~65
|
560
|
|
DG4007
|
4000
|
1700*1500
|
300
|
1300
|
55~65
|
630
|
|
DG4008
|
4000
|
2200*1800
|
300
|
1300
|
55~65
|
720
|
Why Choose a Stationary Scissor Lift Platform?
1. Improves Loading/Unloading Efficiency
Perfect for warehouses, factories, and logistics centers – it lifts goods quickly between different heights, saving time and labor.
2. Space-Saving and Flexible Installation
Can be pit-mounted or placed directly on the floor without taking up too much space. Ideal for fixed workstations.
3. Bridges Height Gaps with Docks, Vehicles, or Lines
Solves the height difference problem between ground level, loading docks, trucks, and platforms smoothly and safely.
4. Versatile for Industrial Applications
Whether it’s used in production, packaging, or storage handling – the scissor lift performs reliably and stably.
