Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables

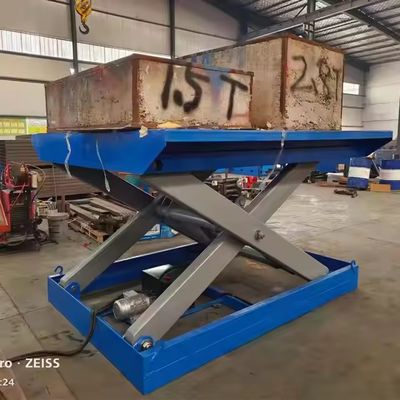

Large Image : Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables

Product Details:

Place of Origin:	China
Brand Name:	CX
Certification:	CE, ISO, SGS
Model Number:	DG1003

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD655-1365
Packaging Details:	We use strong packaging materials to ensure that the products are not damaged during transportation.
Delivery Time:	Within 10-15 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 sets per month

Contact Now

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables

Description

Product Name:	Fixed Electric Hydraulic Scissor Lifting Platform	Model:	DG1003
Rated Loading Capacity:	1000kg	Platform Size:	1700*850mm
Lifting Height:	240-1300mm	Color:	Yellow/ Blue/ Red/green, Etc.
Voltage:	220V/380V As Your Local Requirements	Power Source:	Electric
Weight:	220kg	Warranty:	12 Months
Applicable Industries:	Building Material Shops	Type:	Lifting Equipment

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 0

Sefety precaution

1. Explosion-proof valves

2. explosion proof pipe

3. spill proof by sealed elements
3. Emergency decline by flow valve

4. Overload protection locking device.
5. Automatic Safety sensor:stop when come across barriers.

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 1

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 2

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 3

Model	Rated loading capacity (kg)	Platform size (mm)	Min. Height (mm)	Max. Height (mm)	Lifting time (s)	Net weight (kg)
DG1001	1000	1300*820	205	990	20~25	180
DG1002	1000	1600*1000	205	990	20~25	200
DG1003	1000	1700*850	240	1300	30~35	220
DG1004	1000	1700*1000	240	1300	30~35	230
DG1005	1000	2000*850	240	1300	30~35	230
DG1006	1000	2000*1000	240	1300	30~35	250
DG1007	1000	1700*1500	240	1300	30~35	400
DG1008	1000	2000*1700	240	1300	30~35	470
DG2001	2000	1300*850	230	1000	50~60	260
DG2002	2000	1600*1000	230	1000	50~60	290
DG2003	2000	1700*850	250	1300	50~60	320
DG2004	2000	1700*1000	250	1300	50~60	330
DG2005	2000	2000*850	250	1300	50~60	330
DG2006	2000	2000*1000	250	1300	50~60	350
DG2007	2000	1700*1500	250	1400	50~60	460
DG2008	2000	2000*1800	250	1400	50~60	550
DG4001	4000	1700*1200	250	1050	55~65	410
DG4002	4000	2000*1200	250	1050	55~65	450
DG4003	4000	2000*1000	300	1400	55~65	520
DG4004	4000	2000*1200	300	1400	55~65	540
DG4005	4000	2200*1000	300	1400	55~65	530
DG4006	4000	2200*1200	300	1400	55~65	560
DG4007	4000	1700*1500	300	1300	55~65	630
DG4008	4000	2200*1800	300	1300	55~65	720

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 4

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 5

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 6

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 7

Hydraulic Fixed Scissor Cargo Lift Rotating Platform 1000kg 2000kg Vertical Electric Scissor Platform Lift Tables 8

Shipping and Packaging

1. What is the packaging method of electric machinery?

* We use strong packaging materials to ensure that the products are not damaged during transportation.

* Packaging usually includes foam, cartons, and wooden boxes, which are selected according to the size and weight of the products.

2. What shipping methods are available?

* We provide multiple shipping methods, including sea shipping, air shipping, and land transportation.

* Customers can choose the appropriate shipping method according to their needs and budgets.
