Product Details:
|

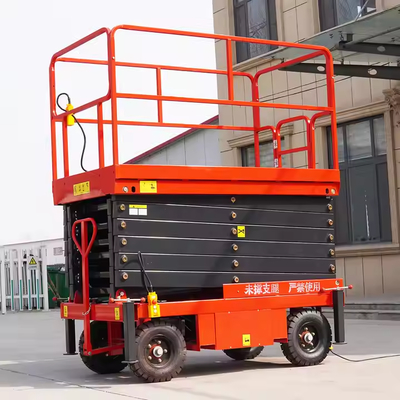

Product Name: | Semi Electric Aerial Work Scissor Lifting Platform | Model: | QYCY0.5-9 |
---|---|---|---|
Max Lifting Height: | 9m | Max Working Height: | 11m |
Rated Loading Capacity: | 500kg | Platform Size:: | 2100*930mm |
Machine Overall Size: | 2250*1060*1500mm | Net Weight: | 1165kg |
Voltage: | 220-480V According To Your Local Requirements | Warranty: | 12 Months |
Hydraulic Semi Electric Scissor Lift Man Aerial Work Platform Hydraulic Mobile Electric Scissor Lifting Platform
Options & Accessories
● Working Lamp on the platform
● Load Sensing System
● AC Power to the Platform
● Air Tube to the Platform
● Outriggers
Model |
Platform Size (mm) |
Loading Capacity (kg) |
Lifting Height (m) |
Overall Size (mm) |
Weight (kg) |
QYCY0.5-4 |
2100*830 |
500 |
4 |
2250*950*1100 |
800 |
QYCY0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
|
QYCY0.5-7 |
2100*830 |
500 |
6.8 |
2250*950*1200 |
970 |
QYCY0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
QYCY0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
|
QYCY0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
QYCY0.3-11 |
2100*1230 |
300 |
11 |
2250*1350*1650 |
1400 |
QYCY0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
QYCY0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
QYCY0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
QYCY0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
QYCY1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
QYCY1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
QYCY1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
QYCY1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
QYCY1.0-12 |
2550*1530 |
1000 |
12 |
2796*1700*1780 |
2560 |
QYCY1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
QYCY1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
QYCY1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
QYCY1.5-10 |
2100*1500 |
1500 |
10 |
2250*1750*1850 |
2250 |
QYCY2.0-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
QYCY2.0-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
QYCY2.0-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
Product description
This product is equipped with a leakage device and a safety device to prevent overloading of the equipment, and an emergency descent device in the event of a power failure. It has beautiful appearance,reliable performance and convenient operation; it is suitable for high-altitude operations such as power supply, industrial and mining, transportation and oil fields.
Safety of mobile scissor lift:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the lift table to stop at accurate position.
4)All the trailing scissor lift are passed 1.2 times loading test before leaving factory.
Package & Delivery
RFQ
Q1. How about the delivery time?
Answer: Generally 15-30 days from the order, if you need it urgently, please let us know.
Q2. Which payment method do you support?
Answer: T/T, L/C, Western Union, Alibaba Trade Assurance. Usually T/T.
Q3: Are you a trading company or a factory?
Answer: Dear, we are an integrated company of factory and trading, we have our own sales-production-quality testing-documentation-delivery-after-sales system.
Q4: What kind of operating power supply can you provide?
Answer: We can provide a single power supply such as AC, battery, diesel, gasoline or dual operating power supply such as AC+battery, AC+diesel for lifts.
Q5. How to transfer the lifts?
Answer: Usually by sea. Plywood packaging and LCL in 20' container.
Q6. Can I print my logo on the lifts?
Answer: Yes. Please inform us formally before production and send us your high pixel logo.
Q7. How to get after-sales service?
Answer: If you have any questions or need professional support, please contact us. We will try to solve your problem within 24 hours and arrange spare parts shipment within 48 hours.
