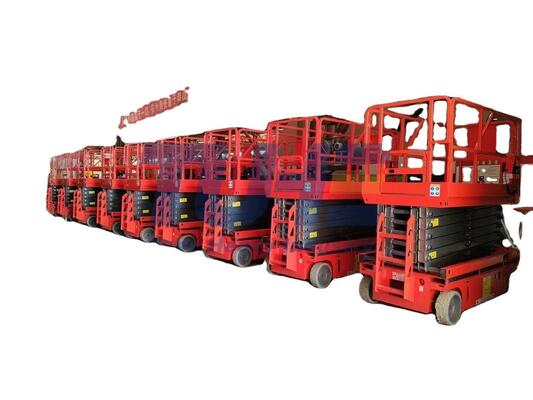

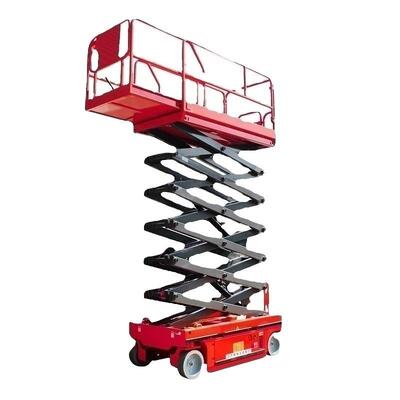

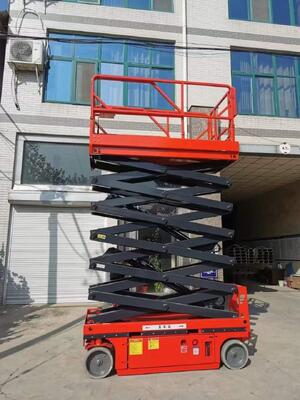

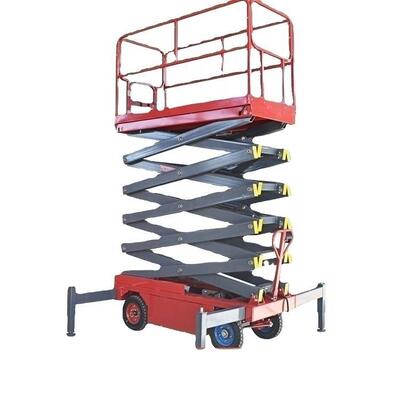

6m 8m 10m 12m 14m Self-Propelled Hydraulic Lifting Platform Electric Scissor Lifts Elevating Table Aerial Work Platform
Product features
The self-propelled scissor lift has an automatic walking function, with an integrated design and a built-in battery power supply.
lt can lift and lower freely under different working conditions without the need for external power or external traction.
The walking and turning of the equipment can be completed controlled by only one person.
It is the ideal high-altitude operation equipment for modern enterprises to achieve efficient and safe operation, therefore widely used in many industries and places such as HIGHWAYS,INDOOR MAINTENANCE,OUTDOOR MAINTENANCE,THE FACTORY,HOTEL,GAS STATION,
PLANT MAINTENANCE, LOGISTICS, industrial installation, property management,warehouse, aviation, airport, port, station, stadium, exhibition hall, cleaning, etc.
|
Model
|
Platform Size
(mm)
|
Rated loading Capacity (kg)
|
Max Lifting Height (m)
|
Max Working Height (m)
|
Overall Size
(mm)
|
Platform Extension Length (mm)
|
Power
(KW)
|
Net Weight
(kg)
|
|
GTJZD03
|
1290*700
|
240
|
3
|
5
|
1435*760*1900
|
0.6
|
|
900
|
|
GTJZD04
|
1290*700
|
240
|
4
|
6
|
1440*760*2030
|
0.6
|
|
950
|
|
GTJZ06
|
1670*740
|
230
|
6
|
8
|
185*790*2200
|
0.9
|
3.3
|
1530
|
|
GTJZ-6A
|
2300*810
|
380
|
6
|
8
|
2480*810*2180
|
0.9
|
3.3
|
1880
|
|
GTJZ-6
|
2300*1130
|
550
|
6
|
8
|
2480*1190*2190
|
0.9
|
3.3
|
2150
|
|
GTJZ-8A
|
2260*810
|
230
|
8
|
10
|
2480*850*2300
|
0.9
|
3.3
|
2030
|
|
GTJZ-8
|
2260*1130
|
450
|
8
|
10
|
2480*1190*2320
|
0.9
|
3.3
|
2300
|
|
GTJZ-10
|
2290*1130
|
320
|
10
|
12
|
2495*1181*2450
|
0.9
|
3.3
|
2530
|
|
GTJZ-12
|
2290*1130
|
320
|
11.8
|
13.8
|
2495*1187*2585
|
0.9
|
4.5
|
2870
|
|
GTJZ-14
|
2670*1130
|
227
|
13.8
|
15.8
|
2840*1400*2595
|
0.9
|
4.5
|
3340
|

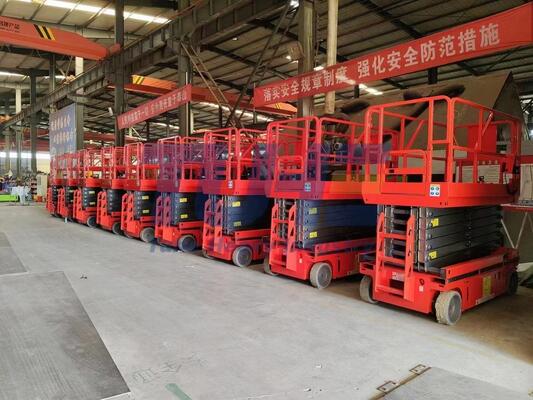

As one of the large-scale manufacturers of aerial work platforms, Wuxi Chengxin Equipmment Machinery Co.,Ltd. is a modern science and technology enterprise mainly engaged in lifting platform including design,R&D and manufacture, with a huge domestic market share recent years, we are expanding the overseas aerial work platform market.
Self propelled aerial work scissor lifting platform
1. Rapid-deployment pedal extension platform for instant positioning.
2. Foldable guardrail reduces overall size by 30%.
3. Compact design with industry-leading 0m inner turning radius enhances maneuverability in tight spaces.
4. 25% gradeability ensures stable operation on slopes.
5. Rotating chassis enables easy access for maintenance.
6. Auto-display fault codes streamline troubleshooting.
7. 4m-14m height range with customization configurations.
Product Advantage
The scissors lift adopts storage battery as the power source which makes lift low noise and no emission when working, so it can be used in indoor occasions such as workshops, warehouses, hotels, church, Indoor maintenance etc.
1.Flexible
The steering wheel can make 90°turn in situ,with running mode at both high and low speed,
which makes it available being used even in small spaces.
2. Compact structure Foldable guardrails
The guardrails of platform are foldable and dismountable which actually reduce the volume of the whole machine in tight spaces. The electric scissors lifts (Model 6M and Model 4M )are compact and the whole width is 780mm, which makes it easy to go through narrow passageway because of its foldable fences.
3.Swivel chassis
The trays in both of the chassis can be swung out which facilitates the maintenance,inspection and replacement.
4.Extended platform
The platform can be extended extra 90CM which can enlarge the working space.
The pedal extension platform can be quickly rolled out to the operating point.
5.25°climbing ability
The machine can climb up the slope effortless.
6.Intelligent ECU
Fault codes are automatically displayed for easy maintenance.
7.Diverse Options to choose
Different models and sizes are designed for clients' personal preference, such as Hydraulic motor and Electric motor ,customised colours.
RFQ
Q. Are you manufacture?
A: Yes,we are factory with more than 10 years of manufacturing experience .
R. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages beforyou pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB,CFR, CIF. Q.How about your delivery time? A:Generally,it will take 7-10 working days after receiving your advance payment.The specific delivery time depends on the item and the quantity of your order.
Q: What is your terms of packing?
A: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q.Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q.How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefits;
2.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
