Product Details:
|
| Product Name: | Walking Type Electric Hydraulic Pallet Stacker | Rated Loading Capacity: | 1500kg |
|---|---|---|---|
| Max Lifting Height: | 2000mm | Load Centre Distance: | 500mm |
| Fork Width: | 550mm/685mm | Fork Length: | 1150mm |
| Operating Mode: | Walking Type | Forklift Tyre: | Polyurethane Tire |
| Overall Length: | 1900mm | Overall Width: | 800mm |
| Overall Height, Mast Lowered: | 2080mm | Min. Turning Radius: | 1688-1768mm |
| Net Weight: | 488kg | Lifting Motor: | 2.2KW |
| Driving Motor: | 0.75KW | Battery Capacity: | 2*12V/85Ah |

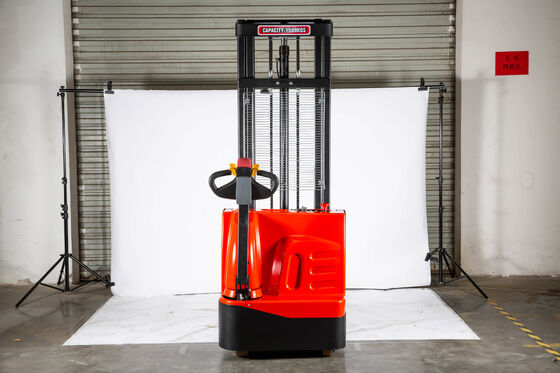

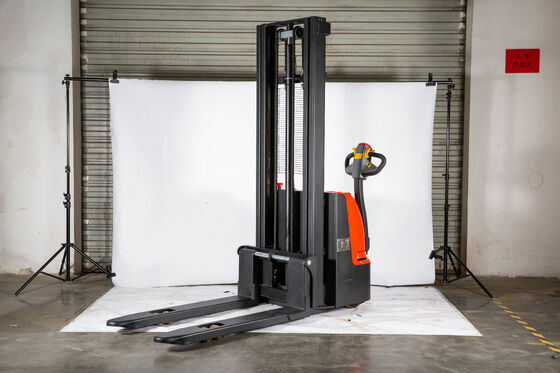

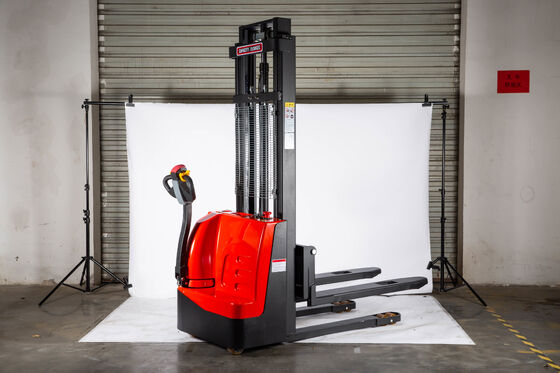

Cost-effective 1.5Ton Walking Type Electric Pallet Stacker up to 3M with Lead-acid Battery Forklift Electric Stacker
![]()
*Specifications
|
Rated loading capacity |
1500kg |
2000kg |
|||
|
Max lifting height |
1600/2000/2500/3000/3500mm |
||||
|
Mast extension height |
2080/2470/2970/3470/4070mm |
||||
|
Overall height |
2080/1580/1830/2080/2280mm |
||||
|
Overall length |
1900/2020/2020/2020/2020mm |
||||
|
Overall width |
800mm |
||||
|
Weight with battery |
488/430/476/500/530kg |
438/460/506/560/590kg |
|||
|
Fork size |
70*165*1150mm |
||||
|
Channel width with pallet 800*1200mm |
2537mm |
||||
|
Channel width with pallet 1000*1200mm |
2468mm |
||||
|
Turning radius |
1600mm |
||||
|
Driving speed, load/ unload |
4.2/5.6km/s |
4/5.2km/h |
|||
|
Lifting speed, load/ unload |
0.105/0.148m/s |
0.095/0.156m/s |
|||
|
Falling speed, load/ unload |
0.125/0.117m/s |
0.115/0.110m/s |
|||
|
Brake |
electromagnetic |
||||
|
Driving motor |
0.75kw |
1.0kw |
|||
|
Lifting motor |
2.2kw |
2.2kw |
|||
|
Battery capacity |
2*12V/85Ah |
2*12V/85Ah |
|||
*Why Choose us
Simplifying heavy lifting globally.
1--With advanced technology and design;
2-- High quality steel for frame and mast, not easy to deform
3--DC motor , less noise
4--Wear-resisting tire
5-- Thickened height guard
6-- Powerful branded battery,optional for lead acid battery, lithium battery and traction battery
7--High voltage ,low current design , prolong the lifespan of electric components
8--Powerful in climbing to climb slop, with grade ability over 30%.
9----Comfortable seat with safety belts,with large operation space.
10----Charging efficiency is higher, more lightweight
![]()
![]()
![]()
![]()
![]()
