2T Double Pallet Lift Stand-on Electric Hydraulic Stacker 3m Lifting Full Electric Pallet Stacker For Factory Warehouse Cargo Handling
Standing Type 2 Tons Electric Hydraulic Pallet Stacker (Double Lift)
|
Characteristics:
|
|
1.1
|
Model
|
|
|
CDDB2016
|
CDDB2020
|
CDDB2025
|
CDDB2030
|
CDDB2035
|
|
1.2
|
Drive Method
|
|
|
Electric
|
|
1.3
|
Operation Mode
|
|
|
Standing Position
|
|
1.4
|
Rated Load
|
Q
|
kg
|
2000
|
|
1.5
|
Load Center Distance
|
C
|
mm
|
600
|
|
Weight
|
|
2.1
|
Weight
Include battery
|
|
kg
|
500
|
550
|
600
|
600
|
650
|
|
Tires, vehicle body
|
|
3.1
|
Tire Material
|
|
|
PU wheels
|
|
3.2
|
Support Wheel Size
|
|
mm
|
80x65
|
|
3.3
|
Drive Wheel Size
|
|
mm
|
160x50
|
|
3.4
|
Balance Wheel Size
|
|
mm
|
115x55
|
|
3.5
|
Wheel Quantity (front/rear, X= drive wheel)
|
|
|
4/3X1
|
|
3.6
|
Front Wheel Distance
|
|
mm
|
450
|
|
3.7
|
Wheelbase
|
|
mm
|
1130
|
|
Size
|
|
4.1
|
Mast Non-lifted Height
|
h1
|
mm
|
1990
|
1500
|
1750
|
2000
|
2230
|
|
4.2
|
Free Lift Height
|
h2
|
mm
|
190
|
190
|
190
|
190
|
190
|
|
4.3
|
Lift Height
|
h3
|
mm
|
1600
|
2000
|
2500
|
3000
|
3500
|
|
4.4
|
Mast Extended Height
|
h4
|
mm
|
2000
|
2400
|
2900
|
3400
|
3900
|
|
4.5
|
Vehicle Lift Height
|
|
mm
|
100
|
100
|
100
|
100
|
100
|
|
4.6
|
Overall Length
|
|
mm
|
1950
|
|
4.7
|
Overall Width
|
|
mm
|
820
|
|
4.8
|
Fork Size
|
|
mm
|
60*185*1150
|
|
4.9
|
Max Fork Outside Spacing
|
|
mm
|
700/550
|
|
4.10
|
Ground Clearance Below Mast
|
|
mm
|
28
|
|
4.11
|
Ground Clearance at Wheelbase Center
|
|
mm
|
50
|
|
4.12
|
Aisle Width For 1200W x 1000L Pallet
|
Ast
|
mm
|
2300
|
|
4.13
|
Aisle Width For 800W x 1200L Pallet
|
Ast
|
mm
|
2300
|
|
4.14
|
Turning Radius
|
|
mm
|
1400
|
|
Performance
|
|
5.1
|
Travel Speed (Loaded/Unloaded)
|
|
Km/h
|
4/4.5
|
|
5.2
|
Lift Speed (Loaded/Unloaded)
|
|
m/s
|
190/230
|
|
5.3
|
Lowering Speed (Loaded/Unloaded)
|
|
m/s
|
110/100
|
|
5.4
|
Max Gradient (Loaded/Unloaded)
|
|
%
|
15
|
|
5.5
|
Service brake
|
|
|
electromagnetic
|
|
Motor
|
|
6.1
|
Drive Motor Power
|
|
kw
|
1
|
|
6.2
|
Lift Motor Power
|
|
kw
|
2.2
|
|
6.3
|
Lead Acid Battery
|
|
V/Ah
|
48/32
|
|
6.4
|
Lithium Battery
|
|
V/Ah
|
48/30
|
|
6.5
|
Drive Control Type
|
|
|
DC
|

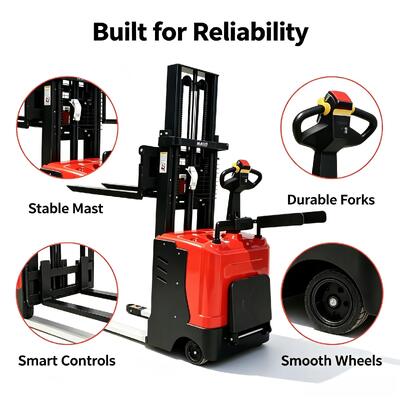

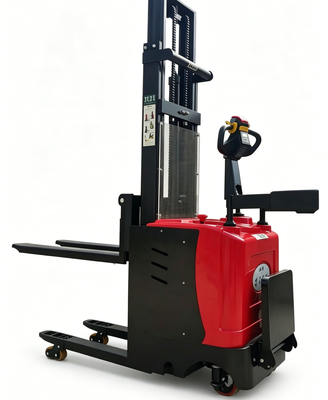

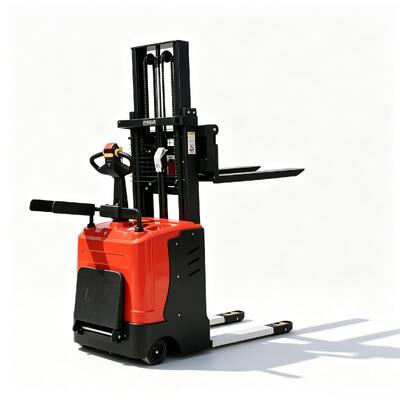

This stand-on full electric double lift stacker supports 2000kg rated load with 3000mm maximum lifting height, equipped with double mast lifting structure for stable vertical cargo stacking. It adopts integrated hydraulic cylinder and high-gradeability obstacle crossing design, solving uneven ground transfer troubles. Built with 6 polyurethane wear-resistant wheels, stand-on driving mode brings long-hour fatigue-free operation, whole machine weight only 740kg with compact overall size 2150*900*2200mm, perfectly fit narrow warehouse aisles. Fully electric walking & lifting reduces manual labor, widely used in factory workshops, logistics warehouses and retail storage for pallet loading, unloading and stacking work, proven reliable structure for long-term industrial use.

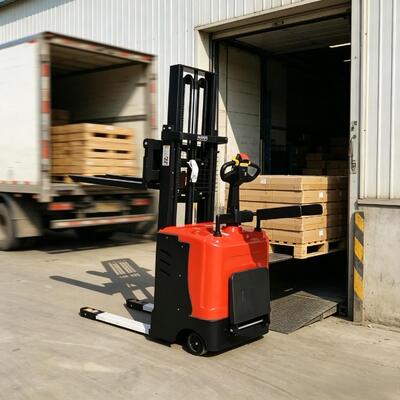

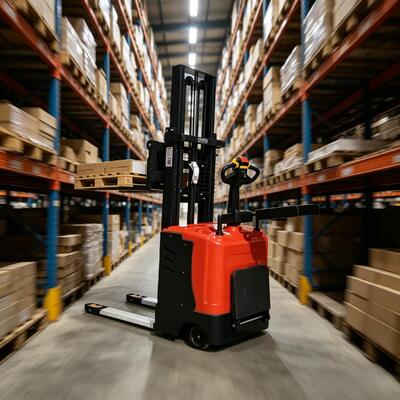

Upgrade your warehouse stacking efficiency with our 2 Ton double lift stand-on electric stacker. Unique double mast lifting system delivers stable 3000mm high lifting for heavy pallet goods, featured with high gradeability obstacle crossing design to pass small ground bumps smoothly. Stand-on full electric operation cuts physical labor, integrated oil cylinder ensures leak-free long service life. All PU silent wheels protect floor, compact body works flexibly in narrow storage aisles. Ideal for factories, logistics centers and retail warehouses, this reliable electric lifter replaces manual carts to speed up loading & unloading workflow greatly.
Say goodbye to labor-intensive manual lifting with our proven reliable full electric double mast stacker. 2000kg stable load
capacity meets daily heavy cargo handling demand, double lift mast improves vertical stacking safety without tilt. Stand-up driving design allows continuous all-day operation, 6 wear-resistant PU wheels offer smooth moving on flat ground. Compact overall dimension fits limited narrow warehouse space, integrated hydraulic cylinder reduces maintenance cost. Perfect for batch pallet loading, unloading and stacking in workshops, supermarkets and storage yards, a cost-effective long-term warehouse handling helper.
RFQ
1Q: Do you support trial orders?
1A: Yes, we accept single-unit trial orders.
2Q: What is the delivery time?
2A: Stock goods can be shipped within 7-15 days. For bulk orders of standard products with wooden box packaging, production will be completed in 35-40 days.
3Q: How long is the product warranty period?
3A: The whole machine enjoys a unified 12-month warranty.
4Q: Can size, color and appearance be customized?
4A: We support full-range OEM / ODM non-standard customization.
5Q: Do you provide overseas after-sales support?
5A: Yes, we provide full online video guidance for installation, operation, maintenance and troubleshooting.
