Product Details:
|
| Product Name: | Fixed Electric Hydraulic Scissor Lifting Tables/ Platforms | Rated Loading Capacity: | 2000kg 3000kg |
|---|---|---|---|
| Power Source: | Electric | Lifting Height: | 250-1050mm |
| Keywords: | Constrruction Hoist | Net Weight: | 410kg |
| Machinery Test Report: | Provided | Platform Size: | 1700*1200mm |
| Model: | Customized | Applicable Industries: | Building Material Shops |
![]()
|
Model |
Rated loading capacity (kg) |
Platform size (mm) |
Min. Height (mm) |
Max. Height (mm) |
Lifting time (s) |
Net weight (kg) |
|
DG1001 |
1000 |
1300*820 |
205 |
990 |
20~25 |
180 |
|
DG1002 |
1000 |
1600*1000 |
205 |
990 |
20~25 |
200 |
|
DG1003 |
1000 |
1700*850 |
240 |
1300 |
30~35 |
220 |
|
DG1004 |
1000 |
1700*1000 |
240 |
1300 |
30~35 |
230 |
|
DG1005 |
1000 |
2000*850 |
240 |
1300 |
30~35 |
230 |
|
DG1006 |
1000 |
2000*1000 |
240 |
1300 |
30~35 |
250 |
|
DG1007 |
1000 |
1700*1500 |
240 |
1300 |
30~35 |
400 |
|
DG1008 |
1000 |
2000*1700 |
240 |
1300 |
30~35 |
470 |
|
DG2001 |
2000 |
1300*850 |
230 |
1000 |
50~60 |
260 |
|
DG2002 |
2000 |
1600*1000 |
230 |
1000 |
50~60 |
290 |
|
DG2003 |
2000 |
1700*850 |
250 |
1300 |
50~60 |
320 |
|
DG2004 |
2000 |
1700*1000 |
250 |
1300 |
50~60 |
330 |
|
DG2005 |
2000 |
2000*850 |
250 |
1300 |
50~60 |
330 |
|
DG2006 |
2000 |
2000*1000 |
250 |
1300 |
50~60 |
350 |
|
DG2007 |
2000 |
1700*1500 |
250 |
1400 |
50~60 |
460 |
|
DG2008 |
2000 |
2000*1800 |
250 |
1400 |
50~60 |
550 |
|
DG4001 |
4000 |
1700*1200 |
250 |
1050 |
55~65 |
410 |
|
DG4002 |
4000 |
2000*1200 |
250 |
1050 |
55~65 |
450 |
|
DG4003 |
4000 |
2000*1000 |
300 |
1400 |
55~65 |
520 |
|
DG4004 |
4000 |
2000*1200 |
300 |
1400 |
55~65 |
540 |
|
DG4005 |
4000 |
2200*1000 |
300 |
1400 |
55~65 |
530 |
|
DG4006 |
4000 |
2200*1200 |
300 |
1400 |
55~65 |
560 |
|
DG4007 |
4000 |
1700*1500 |
300 |
1300 |
55~65 |
630 |
|
DG4008 |
4000 |
2200*1800 |
300 |
1300 |
55~65 |
720 |
The Hydraulic lifting platform is a lifting device with good lifting stability, large carrying capacity and wide application range, and is Suitable for indoor and outdoor loading and unloading.
*Product details:
1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.
2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.
3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.

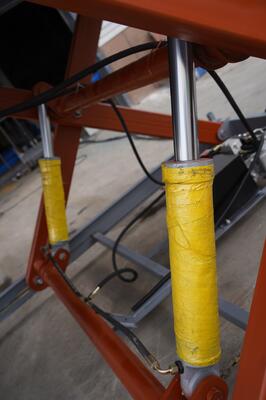

4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.
5.The hydraulic system has a power failure emergency manual descending device.
![]()
![]()
![]()
![]()
