Product Details:
|
| Platform Size: | 1600*1000mm Or As Your Requirements | Product Name: | Fixed Electric Hydraulic Scissor Lifting Tables/ Platforms |
|---|---|---|---|
| Applicable Industries: | Building Material Shops | Model: | Customized |
| Rated Loading Capacity: | 500-5000kg As Your Actual Requirements. | Lifting Height: | 230-1000mm Or As Your Actual Requirements. |
| Keywords: | Constrruction Hoist | Net Weight: | 290kg |
| Power Source: | Electric | Machinery Test Report: | Provided |

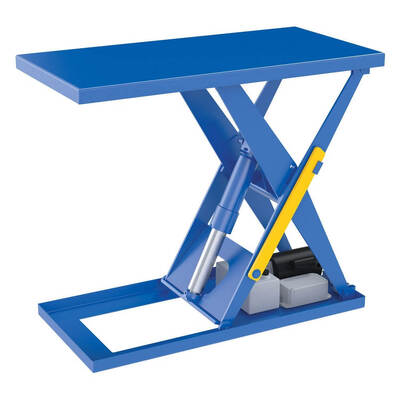

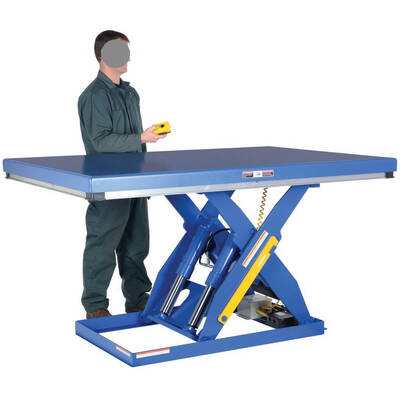

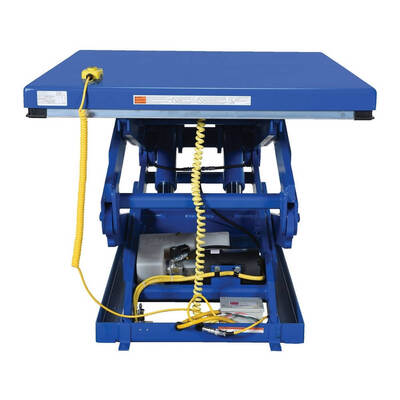

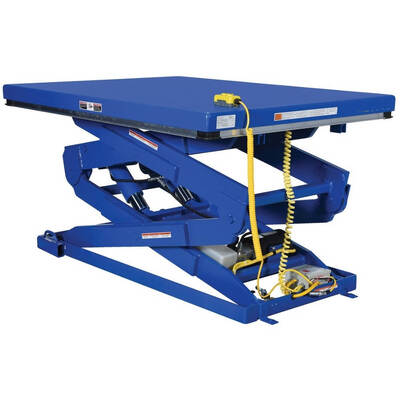

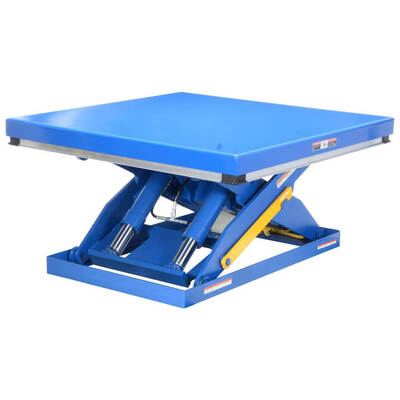

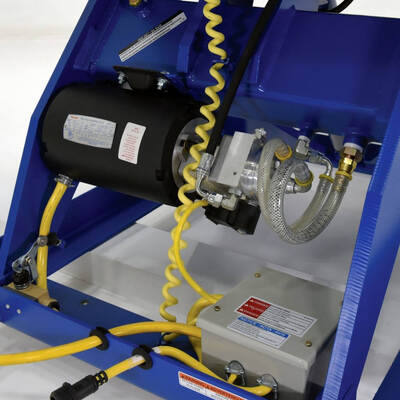

High Level Fixed Electric Stationary Freight Warehouses Cargo Goods Elevator Scissors Work Lifting Platforms Hydraulic Lifts Tables
![]()
|
Model |
Rated loading capacity (kg) |
Platform size (mm) |
Min. Height (mm) |
Max. Height (mm) |
Lifting time (s) |
Net weight (kg) |
|
DG1001 |
1000 |
1300*820 |
205 |
990 |
20~25 |
180 |
|
DG1002 |
1000 |
1600*1000 |
205 |
990 |
20~25 |
200 |
|
DG1003 |
1000 |
1700*850 |
240 |
1300 |
30~35 |
220 |
|
DG1004 |
1000 |
1700*1000 |
240 |
1300 |
30~35 |
230 |
|
DG1005 |
1000 |
2000*850 |
240 |
1300 |
30~35 |
230 |
|
DG1006 |
1000 |
2000*1000 |
240 |
1300 |
30~35 |
250 |
|
DG1007 |
1000 |
1700*1500 |
240 |
1300 |
30~35 |
400 |
|
DG1008 |
1000 |
2000*1700 |
240 |
1300 |
30~35 |
470 |
|
DG2001 |
2000 |
1300*850 |
230 |
1000 |
50~60 |
260 |
|
DG2002 |
2000 |
1600*1000 |
230 |
1000 |
50~60 |
290 |
|
DG2003 |
2000 |
1700*850 |
250 |
1300 |
50~60 |
320 |
|
DG2004 |
2000 |
1700*1000 |
250 |
1300 |
50~60 |
330 |
|
DG2005 |
2000 |
2000*850 |
250 |
1300 |
50~60 |
330 |
|
DG2006 |
2000 |
2000*1000 |
250 |
1300 |
50~60 |
350 |
|
DG2007 |
2000 |
1700*1500 |
250 |
1400 |
50~60 |
460 |
|
DG2008 |
2000 |
2000*1800 |
250 |
1400 |
50~60 |
550 |
|
DG4001 |
4000 |
1700*1200 |
250 |
1050 |
55~65 |
410 |
|
DG4002 |
4000 |
2000*1200 |
250 |
1050 |
55~65 |
450 |
|
DG4003 |
4000 |
2000*1000 |
300 |
1400 |
55~65 |
520 |
|
DG4004 |
4000 |
2000*1200 |
300 |
1400 |
55~65 |
540 |
|
DG4005 |
4000 |
2200*1000 |
300 |
1400 |
55~65 |
530 |
|
DG4006 |
4000 |
2200*1200 |
300 |
1400 |
55~65 |
560 |
|
DG4007 |
4000 |
1700*1500 |
300 |
1300 |
55~65 |
630 |
|
DG4008 |
4000 |
2200*1800 |
300 |
1300 |
55~65 |
720 |
Hydraulic scissor lifting platform
As a common lifting machinery, the hydraulic scissor lift platform has many significant advantages. The following is a detailed explanation of its advantages:
1. Compact structure and high stability
The hydraulic scissor lifting platform adopts a scissor-type structure. This structural form allows the platform to maintain high stability during the lifting process, ensuring the safety and reliability of the platform even during high-altitude operations. At the same time, its structure is compact and takes up little space, making it suitable for operation in limited spaces.
2. Smooth lifting and easy operation
Due to the hydraulic system drive, the hydraulic scissor lift platform can achieve smooth and even movement during the lifting process, avoiding damage to operators or equipment due to mechanical vibration. In addition, it is simple to operate and easy to master, which greatly reduces the difficulty of operation and the error rate.
3. Strong carrying capacity
The hydraulic scissor lift platform has a strong carrying capacity and can meet the lifting needs of goods or personnel of different weight classes. This makes it widely used in factories, warehouses, shopping malls and other places where heavy objects need to be transported.
4. High safety performance
Hydraulic scissor lift platforms are equipped with a variety of safety protection devices, such as anti-fall devices, overload protection, anti-tilt protection, etc. These devices can effectively protect the platform under different circumstances and prevent safety accidents caused by unexpected situations. At the same time, its operating system also has high security and can ensure the safety of operators.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Fixed electric 500kg 800kg 1000kg 2000kg 3000kg 4000kg 5000kg loading capacity can be customized hydraulic scissor lifting platforms.
![]()
