1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker

Certification
China Wuxi Chengxin Machinery Equipment Co.,Ltd. certification
I'm Online Chat Now

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker
1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker

Large Image :  1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker

Product Details:
Place of Origin: Jiangsu, China
Brand Name: CX
Certification: ISO, CE
Model Number: CDD15-16AD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: packaged by plywood pallet or plywood box, and with preservative film.
Delivery Time: Within 12-15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 sets per month

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker

Description

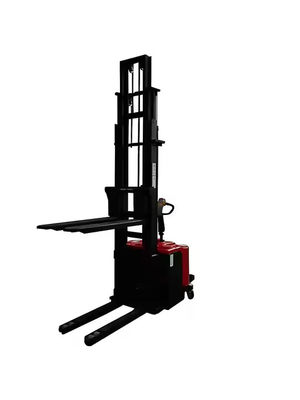

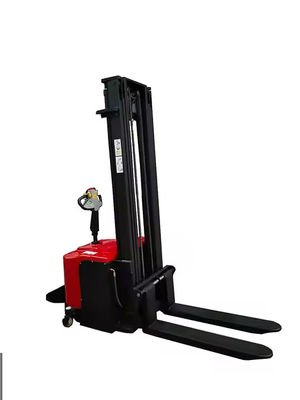

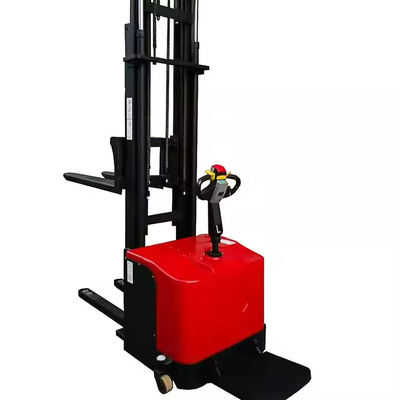

Product Name: Standing Type Forklift Electric Hydraulic Pallet Stacker Model: CDD15-16AD
Rated Loading Capacity: 1500kg Max Lifting Height: 1600mm
Battery: Lead-acid Battery Machine Overall Size: 2080*850*2020mm
Net Weight: 720kg Warranty: 12 Months
Type: Stacker Forklift Color: Customizable

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker


Why choose Electric Stacker

Simplifying heavy lifting globally.
1--With advanced technology and design;
2-- High quality steel for frame and mast, not easy to deform
3--DC motor , less noise
4--Wear-resisting tire
5-- Thickened height guard
6-- Powerful branded battery,optional for lead acid battery, lithium battery and traction battery
7--High voltage ,low current design , prolong the lifespan of electric components
8--Powerful in climbing to climb slop, with grade ability over 30%.
9----Comfortable seat with safety belts,with large operation space.
10----Charging efficiency is higher, more lightweight


1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 0

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 1

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 2

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 3

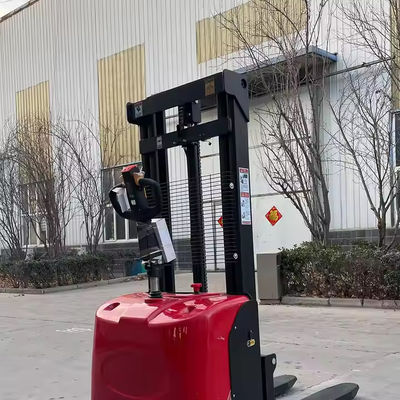

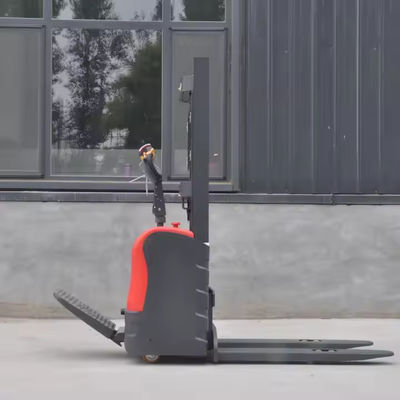

Details Images

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 4


Specifications

Rated loading capacity

1000kg

1500kg

2000kg

Load center

500mm

500mm

500mm

Max lifting height

2000/2500/3000/3500mm

2000/2500/3000/3500mm

2000/2500/3000/3500mm

Fork outside width

550/685mm

550/685mm

550/685mm

Mast extended height

2470/2970/3470/4070mm

2470/2970/3470/4070mm

2470/2970/3470/4070mm

Fork length

1150mm

1150mm

1150mm

Overall length

2080mm

2080mm

2080mm

Overall width

850mm

850mm

850mm

Overall height, mast lowered

1580/1830/2080/2280mm

1580/1830/2080/2280mm

1580/1830/2080/2280mm

Min. turning radius

1688-1768mm

1688-1768mm

1688-1768mm

Channel width, with 1000*1200mm pallet

2914mm

2914mm

2914mm

Channel width, with 800*1200mm pallet

2838mm

2838mm

2838mm

Net weight

720/740/760/790kg

740/760/780/800kg

760/780/800/820kg

Lifting motor

2.2KW

2.2KW

2.2KW

Driving motor

1.3KW

1.3KW

1.3KW

Battery capacity

2*12V/210Ah

2*12V/210Ah

2*12V/210Ah

Lifting speed, load/unload

80/100mm/s

80/100mm/s

80/100mm/s

Lowering speed, load/unload

150/120mm/s

150/120mm/s

150/120mm/s

Travel speed, load/unload

4.2/5.6km/h

4.2/5.6km/h

4.2/5.6km/h

Control system

AC control

AC control

AC control


Package & Delivery

Machine is packaged by plywood pallet or plywood box, and with preservative film.

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 5

Application

1.5 Ton 2T Pallet Stacker Adjustable Lifting Forks Standing Type Forklift Electric Hydraulic Pallet Stacker 6


RFQ

1. What after-sale service do you provide?
We have professional sales team and technical team for all of our customers with 24-hour service,with us your money is safe, we accept payments by PayPal,if you received goods in bad quality, you can refund all your money back.

2.  What terms of payment do you support?
We accept kinds of payment ,such as Western Union, Paypal, L/C, T/T ETC,or other payment for your convenient .

3. How to delivery the goods?
We usually ship goods by sea,which is cheaper than by air,or depends on your specific requirement.

4. What is your warranty about machine?
We offer one year guarantee  generally , also our engineering team available for oversea service with crane installation, inspection and commissioning for your convenient.

5. What is your delivery terms ?
We usually use FOB,also use other terms like EXW, CIF, CFR ...for your convenient .

6.Why should I choose your products?
We can provide high quality products ,perfect price & one-stop Transaction service for all of our customers.
