Product Details:
|
Product Name: | Manual Hydraulic Pallet Trucks | Model: | CXB3000 |
---|---|---|---|
Rated Loading Capacity: | 3000kg | Fork Outside Width: | 550/685mm |
Fork Length: | 1150/1220mm | Net Weight: | 78-81kg |
Lifting Height: | 82-200mm | Small Wheel Size: | Ø80*60mm |
Large Wheel Size: | Ø180*50mm | Fork Width: | 160mm |
High Quality 3-Ton Channel Steel Heavy-Duty Hand Hydraulic Jack Manual Pallet Trucks
Specifications:
Model |
CXB2000 |
CXB2500 |
CXB3000 |
CXB5000 |
Rated loading capacity |
2000kg |
2500kg |
3000kg |
5000kg |

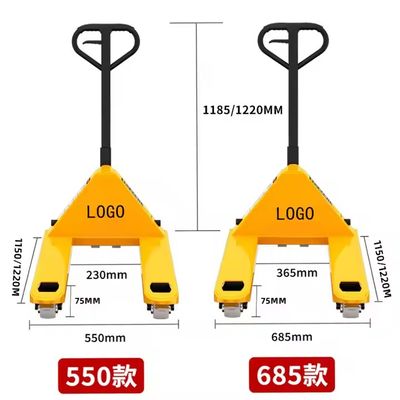

Fork outside width |
550/685mm |
550/685mm |
550/685mm |
550/685mm |
Fork length |
1150/1220mm |
1150/1220mm |
1150/1220mm |
1150/1220mm |
Fork width |
160mm |
160mm |
160mm |
180mm |
Small wheel size |
Ø70*60mm |
Ø80*70mm |
Ø80*60mm |
Ø82*67mm |
Large wheel size |
Ø160*50mm |
Ø180*50mm |
Ø180*50mm |
Ø180*50mm |
Max fork height |
190mm |
198mm |
200mm |
190mm |
Min fork height |
75mm |
83mm |
82mm |
85mm |
Self height |
56-62kg |
61-65kg |
78-81kg |
135-147kg |
Advantage pf product
Manual pallet trucks also known as carry pallet trucks.
The cargo is forked into the tray hole and pallet by the ability to drive the hydraulic system lift and drop and handle the operation manually.
It is the simplest and most efficient pallet in transportation and the most common type of loading and unloading, handling tools, which is widely used in logistics, warehouses, factories, hospitals, schools, shopping center, airport, stadium, station, airport, etc.
Why Choose Us
1. Experiences
We have 25 years experiences of producing material handling equipment.
2. Team
We enjoy a good team of Sales department and professional design team.
3. Fully customized service
1) Support customization of color, logo, fork length and other machine attributes;
2) Welcome to customize non-standard models.
4. R&D new products
1) We are specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.
2)The r&d team constantly develops new products according to customer needs
5. Product quality certification
1) We have passed the certificate of ISO9001:2015 quality system and BSCI.
2) Our products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals.
3)Our products got the national special equipment production license and industrial products production license.
