1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker

Name: 1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker
Brand: Wuxi Chengxin Machinery Equipment Co.,Ltd.
SKU: CDDP15-35
Price: 1,870.00 USD
Availability: InStock

All Products

Lifting platform
(12)

Pallet stacker
(23)

Forklift
(6)

Pallet Trucks
(6)

Aerial Working Lifting Machine
(8)

Best Products

Cheap Price Self Loading Forklift Stacker With Remote Control 1000kg & 1600mm Portable Electric Pallet Stacker

Certification

I'm Online Chat Now

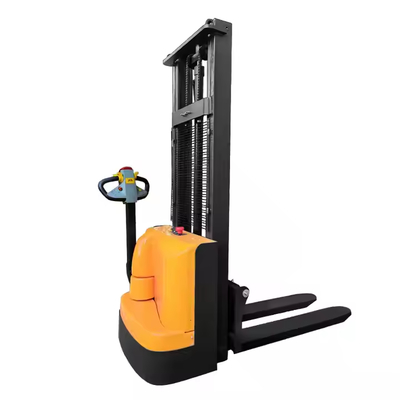

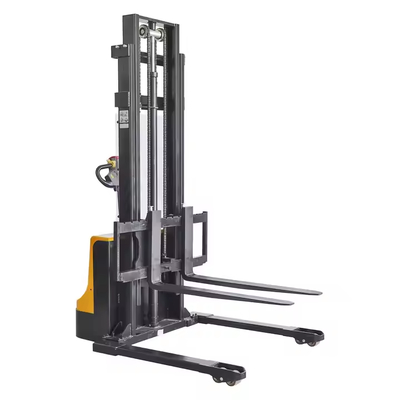

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker

Large Image : 1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker

Product Details:

Place of Origin:	China
Brand Name:	CX
Certification:	ISO, CE
Model Number:	CDDP15-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 1755-1985/set FOB Shanghai port
Packaging Details:	packaged by plywood pallet or plywood box, and with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery Time:	Within 10-15 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	5000 sets per month

Contact Now

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker

Description

Product Name:	Walking Type Electric Hydraulic Pallet Stacker	Model:	CDDP15-35
Rated Loading Capacity:	1500kg	Overall Size:	20208002280mm
Max Lifting Height:	3500mm	Fork Length:	1150mm
Net Weight:	530kg	Forklift Wheelbase:	1335mm
Applicable Industries:	Building Material Shops, Machinery Repair Shops...	Fork Outside Width:	550/685mm
Warranty:	12 Months	Battery Capacity:	2*12V/85Ah

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 0

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 1

Electric stacker is a new choice for medium stacker operations of 1500-2000kg. Compact chassis, light weight, small turning radius, more flexible and practical in material handling and logistics transportation.

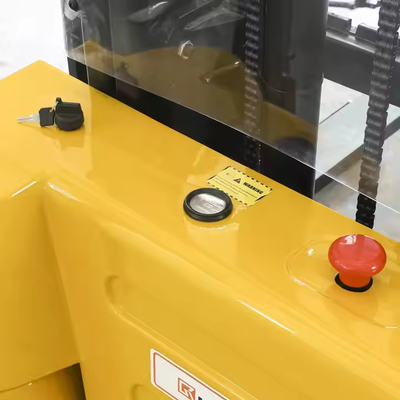

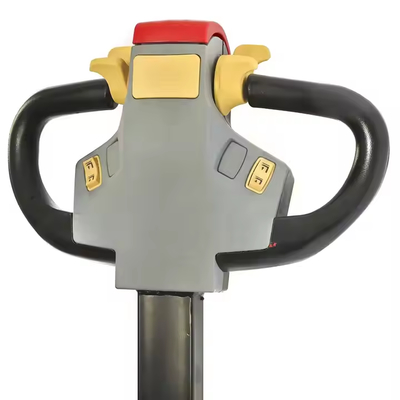

Multi-functional smart control handle includes accelerator, reverse safety button, drop release lever and power indicator, and has the function of switching mode drive when the handle is upright.

Specifications

Rated loading capacity	1500kg	2000kg
Max lifting height	1600/2000/2500/3000/3500mm
Mast extension height	2080/2470/2970/3470/4070mm
Overall height	2080/1580/1830/2080/2280mm
Overall length	1900/2020/2020/2020/2020mm
Overall width	800mm
Weight with battery	488/430/476/500/530kg		438/460/506/560/590kg
Fork size	701651150mm
*Channel width with pallet 8001200mm**	2537mm
*Channel width with pallet 10001200mm**	2468mm
Turning radius	1600mm
Driving speed, load/ unload	4.2/5.6km/s			4/5.2km/h
Lifting speed, load/ unload	0.105/0.148m/s			0.095/0.156m/s
Falling speed, load/ unload	0.125/0.117m/s			0.115/0.110m/s
Brake	electromagnetic
Driving motor	0.75kw				1.0kw
Lifting motor	2.2kw				2.2kw
Battery capacity	2*12V/85Ah				2*12V/85Ah

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 2

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 3

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 4

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 5

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 6

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 7

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 8

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 9

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 10

What benefits can our forklifts bring you?

1. Our products can meet your needs in any model, tonnage, and color, allowing you to better complete your work.

2. The electric forklift products we can sell in the United States and Europe have passed CE certification, and the core components comply with European and American standards.
3. We have strict after-sales guarantee, if parts are damaged during transportation, we can provide parts for free
4.We are professional manufacturers who can provide customized services according to your needs

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 11

Packages & Shipping

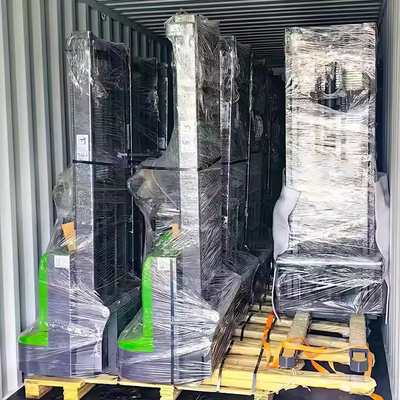

Machine is packaged by plywood pallet or plywood box, and with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 12

FAQ

1. What about your delivery time?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
2. Q: What is about your warranty?
A: 12 months . If during the warranty, we will send to you for free by courier.
3. Can provide customized products?
Yes, we can provide customized products according to your requirement.
4. Which is the port of yours?
We ship the goods from Shanghai, Ningbo, Qingdao ports, can be arranged according to customer requirements
5. What can I get from cooperating with US?
a. Unique products, with customized service.
b. Timely production and delivery, time is money.
c. Market protection service, long term business strategy.

1500kg 3500mm Stacker Car Lift Electric Walking Stacker Hydraulic Electric Stacker 13
