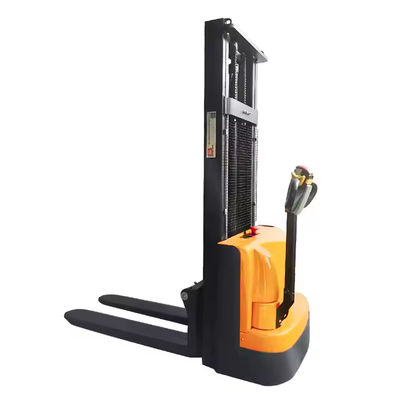

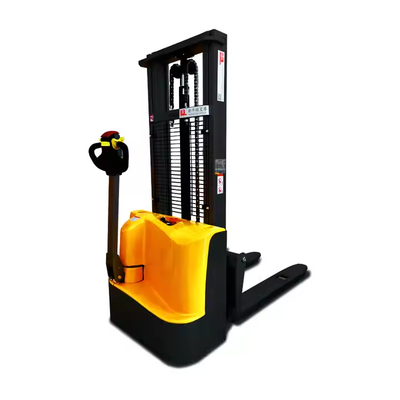

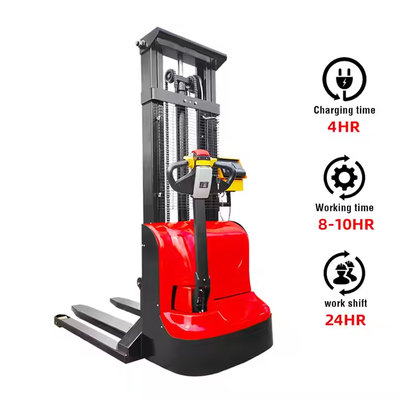

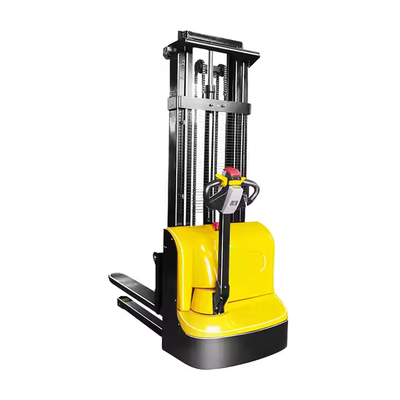

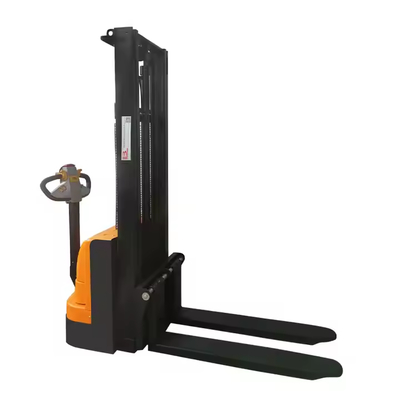

Lifting Electric Stackers Pallet Stacker 2000kg 1600mm Walking Type Electric Stacking Truck Forklift
Electric stacker is a new choice for medium stacker operations of 1500-2000kg. Compact chassis, light weight, small turning radius, more flexible and practical in material handling and logistics transportation.
Multi-functional smart control handle includes accelerator, reverse safety button, drop release lever and power indicator, and has the function of switching mode drive when the handle is upright.
Specifications
|
Rated loading capacity
|
1500kg
|
2000kg
|
|
Max lifting height
|
1600/2000/2500/3000/3500mm
|
|
Mast extension height
|
2080/2470/2970/3470/4070mm
|
|
Overall height
|
2080/1580/1830/2080/2280mm
|
|
Overall length
|
1900/2020/2020/2020/2020mm
|
|
Overall width
|
800mm
|
|
Weight with battery
|
488/430/476/500/530kg
|
438/460/506/560/590kg
|
|
Fork size
|
70*165*1150mm
|
|
Channel width with pallet 800*1200mm
|
2537mm
|
|
Channel width with pallet 1000*1200mm
|
2468mm
|
|
Turning radius
|
1600mm
|
|
Driving speed, load/ unload
|
4.2/5.6km/s
|
4/5.2km/h
|
|
Lifting speed, load/ unload
|
0.105/0.148m/s
|
0.095/0.156m/s
|
|
Falling speed, load/ unload
|
0.125/0.117m/s
|
0.115/0.110m/s
|
|
Brake
|
electromagnetic
|
|
Driving motor
|
0.75kw
|
1.0kw
|
|
Lifting motor
|
2.2kw
|
2.2kw
|
|
Battery capacity
|
2*12V/85Ah
|
2*12V/85Ah
|
Our Services
1. Perfect maintenance service and maintenance consultation system to provide high quality experience for customers at home and abroad; whole year warranty.
2. Small order can be accepted, MOQ 1PCS.
3. Quality assurance agreement provided.
4. 7D*24H after-sales service.
5. More than 100 professional service staff.
6. Video tutorials, maintenance, technical consultants, installation guidance are offered.
Packages & Shipping
Machine is packaged by plywood pallet or plywood box, and with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
RFQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customizeservice according to your requirement.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our
principle all the time. You can be assured on our production completely.
Q:What should I do if we are not able to operate the machine when we receive it?
A:Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
