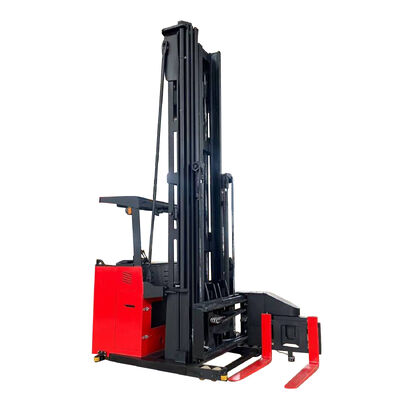

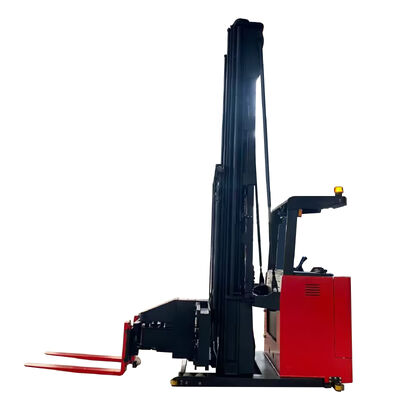

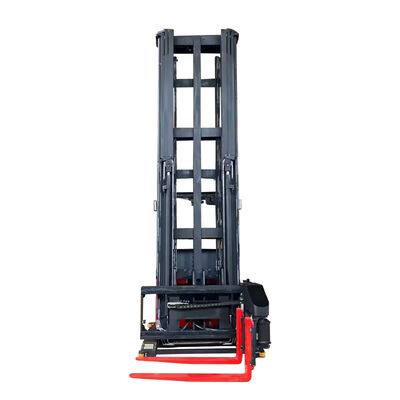

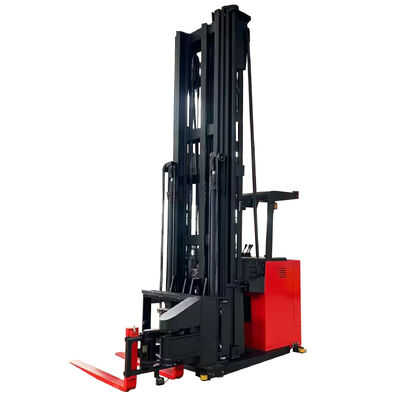

1000kg 3-Way Electric Pallet Stacker 7.5m Lift Height Lead Acid Battery Hydraulic Side Shifter CE Certified for Narrow
Without turning the vehicle body, three-way pallet stacker series can access goods in rotation, to left, right to load or unload the goods; Intensive storage, optimal to enlarge the warehouse capacity. The min aisle width is only 1500mm.
Outstanding performance of sorting, material handling, stacking in narrow aisles. It saves the space and enlarges the warehouse capacity greatly;
Customized electromagnetic navigation/laser navigation AGV.
---Advantages of detail
Equipped with branded control system and multi-functional protection system, it offers a higher level functional safety;
Equipped with camera, electronic display, timing, fault display and excellent digit transmission LED, it shows real-time vehicle operation status for troubleshooting and maintenance conveniently.
Guide rail wheel appliance achieves steering control automation, allowing vehicle to smoothly pass even the narrowest aisles;
Equipped with high-strength German Krupp steel mast, not easy to deform, steady operate. Optimized mast reduces the lifting and lowering liberation to offer a great operation comfort.
---Products Parameters
|
Model
|
|
CDDM10-60S
|
CDDM12-60S
|
CDDM15-60S
|
CDDM16-60S
|
|
Power
|
|
Electric
|
|
Operation
|
|
Side-standing
|
|
Rated load
|
Q(kg)
|
1000
|
1200
|
1500
|
1600
|
|
Load centerdistance
|
C(mm)
|
500
|
500
|
600
|
600
|
|
Service weight(incl.battery)
|
kg
|
5100
|
5200
|
6300
|
6500
|
|
Wheel type
|
|
PU
|
PU
|
PU
|
PU
|
|
Drivewheel specifications
|
×w(mm)
|
Ф382*142
|
|
The front wheelspecification
|
Xw(mm)
|
φ145*100
|
φ145*100
|
φ145*100
|
φ145*100
|
|
The balance wheel specification
|
×w(mm)
|
φ180*76
|
φ180*76
|
φ180*76
|
φ180*76
|
|
Tread,front
|
b10(mm)
|
1210
|
1210
|
1305
|
1305
|
|
Mast height,lowered
|
h1(mm)
|
3400
|
3400
|
3400
|
3400
|
|
Free lifting height
|
h2(mm)
|
2235
|
2235
|
2235
|
2235
|
|
Lift height
|
h3(mm)
|
6000
|
6000
|
6000
|
6000
|
|
Mastheight,extended
|
h4(mm)
|
7125
|
7125
|
7125
|
7125
|
|
Overhead guard height
|
h14(mm)
|
2260/2300
|
|
Length(forks rotate on both left and right sides)
|
l2(mm)
|
3045
|
3045
|
3065
|
3065
|
|
Vehicle width
|
b1(mm)
|
1455
|
1455
|
1550
|
1550
|
|
Anti-collision guardrail width
|
(mm)
|
1500
|
1500
|
1600
|
1600
|
|
Forks dimensions
|
s/e/l(mm)
|
40/122/1070
|
45/125/1200
|
|
Forks adjustment dimensions
|
b5(mm)
|
260-650 (Customized)
|
|
The min.ground clearance (wheelbase center)
|
m2(mm)
|
32
|
32
|
32
|
32
|
|
Stacking aisle width
|
Ast(mm)
|
1500(1000*1000pallet)
|
1600(1200*1200pallet)
|
|
Aisle guide rail width
|
(mm)
|
120
|
120
|
120
|
120
|
|
The min.tuning radius
|
Wa(mm)
|
1985
|
1985
|
1985
|
1985
|
|
The main aisle width
|
|
3270+400
|
3270+400
|
3470+400
|
3470+400
|
|
The max. travelling speed,unladen/full-loaded
|
km/h
|
8/7
|
8/7
|
8/7
|
8/7
|
|
Lift speed,unladen/full-loaded
|
|
0.30/0.26
|
0.30/0.26
|
0.30/0.26
|
0.30/0.26
|
|
Lowerspeed,unladen/full-loaded
|
|
0.30/0.32
|
0.30/0.32
|
0.36/0.39
|
0.36/0.39
|
|
Service brake
|
|
Electromagnetic
|
|
Drive motor power
|
|
6.5AC
|
6.5AC
|
6.5AC
|
6.5AC
|
|
Lift motor power
|
|
15AC
|
15AC
|
15AC
|
15AC
|
|
Battery type
|
|
Lead-acid
|
Lead-acid
|
Lead-acid
|
Lead-acid
|
|
Battery voltage/capacity
|
V/Ah
|
48/400
|
48/400
|
48/400
|
48/400
|
|
Motor
|
V/A
|
48/50
|
48/50
|
48/50
|
48/50
|
|
Drive control mode
|
|
AC
|
AC
|
AC
|
AC
|
---Products Applications

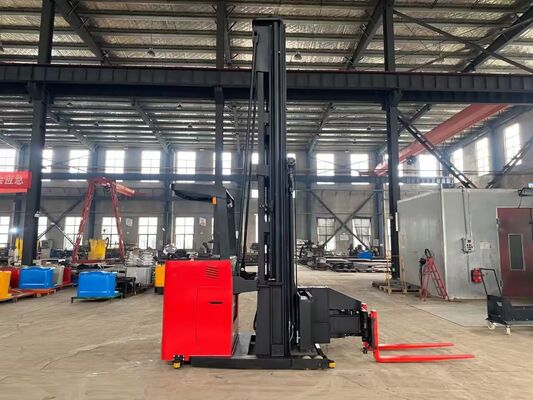

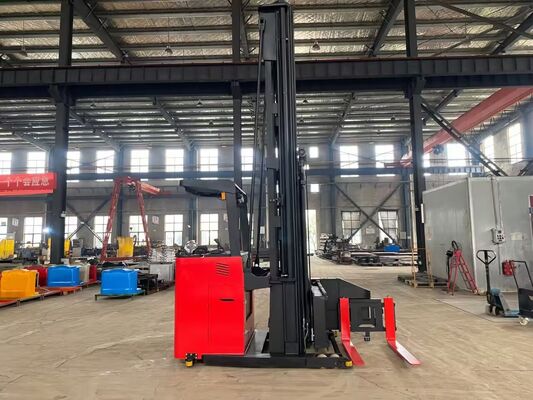

---Our Factory
---RFQ
Q: What is the MOQ?
A: One set.
Q: Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q: How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.
Q: What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
