2000kg Capacity Dual Lifting Mast Hydraulic System Reliable Climbing Performance 2m Lifting Stand on Electric Stacker

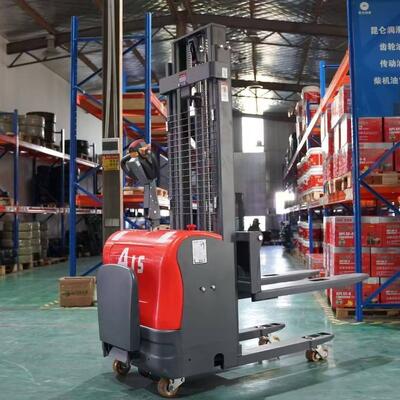

Large Image : 2000kg Capacity Dual Lifting Mast Hydraulic System Reliable Climbing Performance 2m Lifting Stand on Electric Stacker

Product Details:

Place of Origin:	China
Brand Name:	CX
Certification:	CE, ISO, SGS
Model Number:	CDDB2030

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD1190-1790/set
Packaging Details:	Packaging usually includes foam, cartons, and wooden boxes, which are selected according to the size and weight of the products.
Delivery Time:	Within 10-15 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 sets per month

Contact Now

2000kg Capacity Dual Lifting Mast Hydraulic System Reliable Climbing Performance 2m Lifting Stand on Electric Stacker

Description

Product:	Standing Type 2 Tons Electric Hydraulic Pallet Stacker (Double Lift)	Forklift Battery Type:	Lead–Acid Battery
Rated Loading Capacity:	2000kg	Max Lifting Height:	3000mm
Certificate:	CE/ ISO/ SGS	Terrain Adaptability:	Flat Cement Floor, Smooth Hard Ground
Load Centre Distance:	575mm	Mast Type:	Double Lift Double Mast
Fork Width:	160mm	Fork Length:	1150mm
Drive Type:	Electric Drive	Forklift Tyre:	Polyurethane Tire
Applicable Industries:	Warehouse, Factory, Logistics, Supermarket, Worksh	Core Advantage:	High Gradeability & Obstacle Crossing

2000kg Capacity Dual Lifting Mast Hydraulic System Reliable Climbing Performance 2m Lifting Stand on Electric Stacker

2000kg Capacity Dual Lifting Mast Hydraulic System Reliable Climbing Performance 2m Lifting Stand on Electric Stacker

Standing Type 2 Tons Electric Hydraulic Pallet Stacker (Double Lift)

Characteristics:
1.1	Model			CDDB2016			CDDB2020		CDDB2025			CDDB2030			CDDB2035
1.2	Drive Method			Electric
1.3	Operation Mode			Standing Position
1.4	Rated Load	Q	kg	2000
1.5	Load Center Distance	C	mm	600
Weight
2.1	Weight Include battery		kg	500		550		600					600				650
Tires, vehicle body
3.1	Tire Material			PU wheels
3.2	Support Wheel Size		mm	80x65
3.3	Drive Wheel Size		mm	160x50
3.4	Balance Wheel Size		mm	115x55
3.5	Wheel Quantity (front/rear, X= drive wheel)			4/3X1
3.6	Front Wheel Distance		mm	450
3.7	Wheelbase		mm	1130
Size
4.1	Mast Non-lifted Height	h1	mm	1990	1500					1750				2000		2230
4.2	Free Lift Height	h2	mm	190	190						190			190		190
4.3	Lift Height	h3	mm	1600	2000						2500			3000		3500
4.4	Mast Extended Height	h4	mm	2000	2400						2900			3400		3900
4.5	Vehicle Lift Height		mm	100	100						100			100		100
4.6	Overall Length		mm	1950
4.7	Overall Width		mm	820
4.8	Fork Size		mm	601851150
4.9	Max Fork Outside Spacing		mm	700/550
4.10	Ground Clearance Below Mast		mm	28
4.11	Ground Clearance at Wheelbase Center		mm	50
4.12	Aisle Width For 1200W x 1000L Pallet	Ast	mm	2300
4.13	Aisle Width For 800W x 1200L Pallet	Ast	mm	2300
4.14	Turning Radius		mm	1400
Performance
5.1	Travel Speed (Loaded/Unloaded)		Km/h	4/4.5
5.2	Lift Speed (Loaded/Unloaded)		m/s	190/230
5.3	Lowering Speed (Loaded/Unloaded)		m/s	110/100
5.4	Max Gradient (Loaded/Unloaded)		%	15
5.5	Service brake			electromagnetic
Motor
6.1	Drive Motor Power		kw	1
6.2	Lift Motor Power		kw	2.2
6.3	Lead Acid Battery		V/Ah	48/32
6.4	Lithium Battery		V/Ah	48/30
6.5	Drive Control Type			DC

2000kg Capacity Dual Lifting Mast Hydraulic System Reliable Climbing Performance 2m Lifting Stand on Electric Stacker

Say goodbye to labor-intensive manual lifting with our proven reliable full electric double mast stacker. 2000kg stable load
capacity meets daily heavy cargo handling demand, double lift mast improves vertical stacking safety without tilt. Stand-up driving design allows continuous all-day operation, 6 wear-resistant PU wheels offer smooth moving on flat ground. Compact overall dimension fits limited narrow warehouse space, integrated hydraulic cylinder reduces maintenance cost. Perfect for batch pallet loading, unloading and stacking in workshops, supermarkets and storage yards, a cost-effective long-term warehouse handling helper.

2000kg Capacity Dual Lifting Mast Hydraulic System Reliable Climbing Performance 2m Lifting Stand on Electric Stacker

RFQ

1Q: Do you support trial orders?

1A: Yes, we accept single-unit trial orders.

2Q: What is the delivery time?

2A: Stock goods can be shipped within 7-15 days. For bulk orders of standard products with wooden box packaging, production will be completed in 35-40 days.

3Q: How long is the product warranty period?

3A: The whole machine enjoys a unified 12-month warranty.

4Q: Can size, color and appearance be customized?

4A: We support full-range OEM / ODM non-standard customization.

5Q: Do you provide overseas after-sales support?

5A: Yes, we provide full online video guidance for installation, operation, maintenance and troubleshooting.
